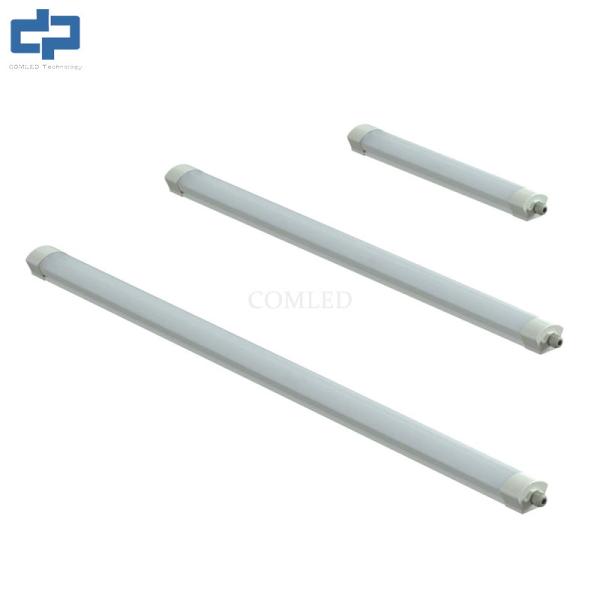

Linear Led Surface Mount Fixture 4FT LED Linear Light With Press Type Terminal Block
This linear fitting is IP66 waterproof rating, adopts innovative knob for quick installation, easy for connecting power supply with quick terminal block, no need to use tools and screws. Adopts high brightness SMD2835 light source,opimized optical design on diffuser and flicker-free driver, which makes higher lumen output and light distribution even and soft, no glare, no flicker. It can be with sensor dimming function. Economic light solution for underground parking lots, underground passage, warehouses, stair well, long corridor, tunnel and boat application.
Features
◆ High-grade aluminum heatsink and anti-UV PC housing.
◆IP66 waterproof rating and IK10 high intensity.
◆High transmittance(88%) PC diffuser.
◆220lm/W LED chip as the light source(approval by LM-80).
◆high efficency,flicker free driver.
◆Surface mounted/hanging installation.
◆End cap knob type, quick wiring terminal block for easy installation.
◆ sensor dimming function with remote setting (option).
◆Linkable connection function(option).
◆Approved by CE ROHS SAA and C-Tick (RCM).
◆5 years warranty.
LED Linear Lighting Fixture(K-Series)Specification Parameter Data:
| Model | Input voltage | Watt | Sensor Dimming standby | Emergency |
| ZL-KSBLP20-2FT-CN | AC100V-240V | 20w | x | x |
| ZL-KSBLP36-4FT-CN | AC100V-240V | 36w | x | x |
| ZL-KSBLP44-5FT-CN | AC100V-240V | 44w | x | x |
| ZL-KSBLP20-2FT-DS | AC100V-240V | 20w | 100% / 20% /OFF | x |
| ZL-KSBLP36-4FT-DS | AC100V-240V | 36w | 100% / 20% /OFF | x |
| ZL-KSBLP44-5FT-DS | AC100V-240V | 44w | 100% / 20% /OFF | x |
| Note: x -No this function |
LED Linear Lighting Fixture(K-Series) Specification Details:
| LUMINAIRE INFORMATION |
| Model | ZL-KSBLP20-2FT | ZL-KSBLP36-4FT | ZL-KSBLP44-5FT |
| Rated Power | 20W | 36W | 44W |
| Install | Surface Mount/Suspended/Linkable |
| Protection Rating | IP66 IK10 |
| Housing | PC+AL |
| Optics | PC Milky Diffuser |
| Connection Type | Quick Terminal Block(Push) or Linkable |
| Operating Temperature | -20℃ to 40℃ |
| Warranty | 3 Years |
| Dimming (Option) | Microwave Sensor - 3 Stepped Version(100%-20%-OFF) |
| PHOTOMETRIC |
| Luminous Efficacy | 120-140lm/W |
| LED | SMD2835 |
| CCT | 3000K/4000K/5000K/6000K |
| CRI | >80 |
| Beam Angle | 120 degree |
| ELECTRICAL |
| Input power Supply | AC220-240V/50-60HZ |
| Power Factor | 0.9 |
| Lifespan@Ta25°(L70) | 54,000 hours |
| Electrical Classification | Class II |
| Package Dimensions | 655*89*65mm | 1255*89*65mm | 1555*89*65mm |
Linear LED Vapor Tight Light Fixture Size:
Main serve customers
Engineering Contractors, Electrical Service Providers, Wholesalers, Distributors, Supermarkets and other sellers of LED Linear Luminaire.
